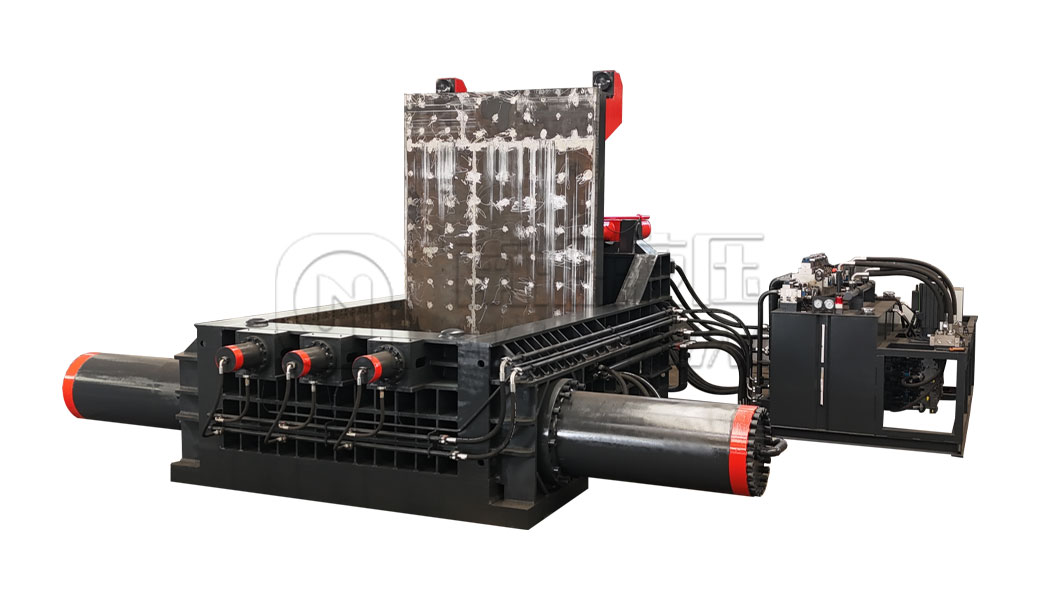

Y81 Series Hydraulic Scrap Balers

Function
Used for the thickness of less than 6mm of all kinds of metal waste (scrap, shavings, scrap steel, scrap aluminum, scrap copper, waste stainless steel) extrusion into cuboid, octagon body, cylinder and other shapes of qualified charge. It is suitable for scrap steel processing and distribution center (base), scrap car dismantling and remanufacturing enterprises, steel and non-ferrous metal industry, etc.

Features
1. All models are driven by hydraulic pressure, manual operation or PLC automatic control can be selected.
2. The way to get out of the bag is to turn over the bag, push the bag on the side, push the bag forward, take the bag manually, etc.
3. It can be equipped with diesel engine as standby power supply.

Technical Specification

Model	Main Cyl.Force(ton)	Press Box Size(L×W×H/mm)	Bale Size(W×H/mm)	Power(kw)
Y81/F-125	125	1200×700×600	300×300	15
Y81/F-125	125	1400×800×300	300×300	22
Y81/F-125	125	1400×900×600	300 octagon	22
Y81/F-160A	160	1600×1000×800	400×400	22
Y81/F-160B	160	1600×1200×800	400×400	37
Y81/F-200A	200	1600×1200×800	400×400	37
Y81/F-200B	200	1800×1400×800	450×450	2×22
Y81/F-250	250	2000×1400×900	500×500	2×22
Y81/F-250	250	2500×2000×1000	500×500	2×30
Y81/F-250	250	2500×2000×1200	600×600	2×30

Technical Specification

Model	Main Cyl.Force(ton)	Press Box Size(L×W×H/mm)	Bale Size(W×H/mm)	Power(kw)
Y81/K-250	250	2500×2000×1000	500×500	2×30
Y81/K-315	315	2500×2000×1200	500×500/600×600	2×45
Y81/K-315	315	3500×3000×1300	700×700	2×45
Y81/K-400	400	2500×2000×1200	600×600	2×45
Y81/K-400B	400	3500×3000×1300	700×700	3×45
Y81/K-500	500	2500×2000×1200	600×600	2×45
Y81/K-500B	500	3500×3000×1300	700×700	3×45
Y81/K-630X	630	2500×2000×1200	600×600	3×45
Y81/K-630A	630	3000×2500×1200	600×600	3×45
Y81/K-630B	630	3500×3000×1300	700×700	3×45
Y81/K-800	800	3500×3000×1300	700×700	4×45
Y81/K-1000A	1000	3000×2500×1400	600×600	4×45
Y81/K-1000B	1000	3500×3000×1400	700×700	5×45
Y81/K-1300A	1300	3000×2500×1400	600×600	3×90
Y81/K-1300B	1300	3500×3000×1400	700×700	3×90
Y81/K-1500A	1500	3500×3000×1500	700×700	4×90
Y81/K-1500B	1500	4000×3000×1500	700×700	4×90
Y81/K-2000	2000	4000×3000×1600	700×700/800×800	5×90

Technical Specification

Model	Main Cyl.Force(ton)	Press Box Size(L×W×H/mm)	Bale Size(W×H/mm)	Power(kw)
Y81/Q-135B	135	1300×600×600	600×240	Front package block
Y81/Q-200	200	1400×700×600	700×280	Front package block
Y81/Q-315	315	1600×800×600	800×280	Front package block

Technical Specification

Model	Main Cyl.Force(ton)	Press Box Size(L×W×H/mm)	Bale Size(W×H/mm)	Power(kw)
Y81/F-315	315	2500×2000×1200	600×600	2×45
Y81/F-315	315	3000×2500×1200	600×600	2×45
Y81/F-315	315	3500×3000×1300	600×600/700×700	2×45
Y81/F-400	400	3500×3000×1300	700×700	3×45
Y81/F-400l	400	5000×2200×1300	500×500	3×45
Y81/F-500	500	3000×2500×1300	700×700	3×45
Y81/F-630	630	4000×3000×1300	700×700	3×45
